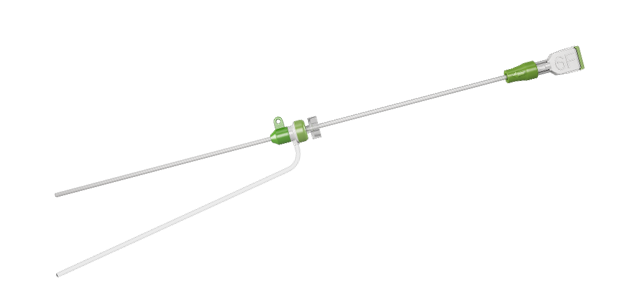

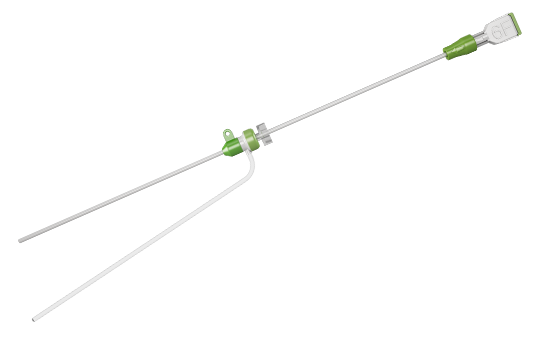

ObturaTM Vascular Closure Device is an effective mechanical system for femoral artery puncture site closure.
Incorporated with a potent sealing system, it provides an assailable sealing with the collagen plug and efficiently designed anchor. ObturaTM Vascular Closure Device is a simple 3-Step closure device making it easy to use and yielding rapid hemostasis.

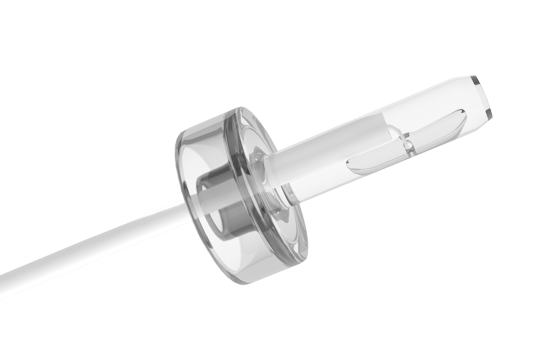

The ObturaTM VCD closes and sandwiches the arteriotomy between the anchor and collagen sponge. Hemostasis is achieved primarily by the mechanical means of the anchor - arteriotomy - collagen sandwich, which is supplemented by the coagulation inducing properties of the collagen.

The ObturaTM VCD can be used with the existing 6 and 8 French  introducer sheath used during the interventional procedures with a working length of up to 12cm.


Obtura Vascular Closure Device (VCD)


The ObturaTM Vascular Closure Device is indicated for femoral artery puncture site closure, reducing times to hemostasis and ambulation in patients who have undergone diagnostic or interventional catheterization procedures using a standard 6F or 8F vascular sheath introducer with up to 12 cm working length.

Product Specifications

Device Size 6F and 8F
Device Total Length 205 ±10 mm
Device Effective Length 155 ±10mm
Complete Degradation Period 90 Days
Introducer Sheath Compatibility 6F device compatible with 6F & 7F Introducer Sheath
8F device compatible with 8F & 9F Introducer Sheath

Size Chart

Ordering Information:

Product Information Product Code
Obtura Vascular Closure Device 6F  OBT6F
Obtura Vascular Closure Device 8F  OBT8F

Clinical Data

Study Name Type of Study Total Patients Status LINKS
Obtura VCD-1 Study Randomized controlled trial 218 Ongoing Know more

Product IFU

Note: IFU will be displayed after MDR Certification
