Miltonia™

Bi-Leaflet Mechanical Heart Valve

The Miltonia™ Mechanical Heart valve is a Bi-Leaflet Heart Valve made up of highly durable Pyrolytic Carbon on a Graphite substrate. The Pyrolytic Carbon is Silicon (Si) alloyed and contains around 3 to 8 % of Silicon(Si) and around 12% Tungsten(W) for radiopacity.


The Polished Silicon alloyed varieties of Pyrolytic Carbon exhibit an excellent degree of thromboresistance while improving resistance to wear, offering excellent and durable results.

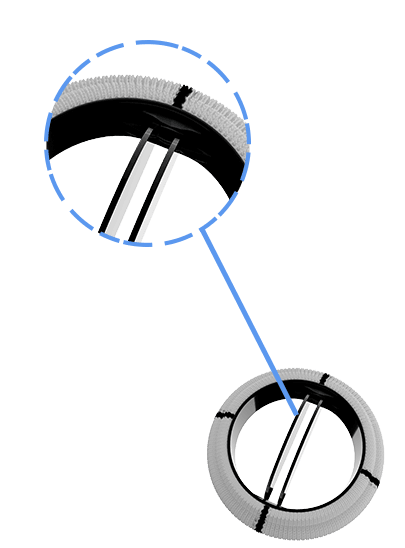

An open pivot design provides a Passive Washing mechanism of pivot which minimizes thrombolytic events. The Orifice ring consists entirely of Pyrolytic Carbon. In the full open position, the plane of each leaflet forms a nominal angle of 85° relative to the plane of the orifice ring.

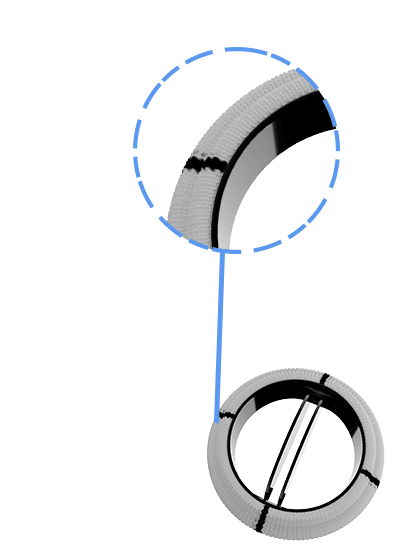

The valve Sewing cuff is made up of Double Velour Polyester fabric and is mounted on the orifice using a Titanium (Ti) Stiffening ring and secured with two Titanium (Ti) Lock rings and a Lock wire. This method of Sewing cuff attachment to the orifice allows for rotation of the carbon orifice in situ during implantation. Three markers are located in the aortic Sewing ring and four markers are located in the mitral sewing ring to assist in the uniform placement of sutures around the valve annulus.

Key Features

Bileaflet design with 85 degree opening - Pyrolytic carbon coating over graphite substrate, Tungsten (W) impregnated leaflets for radio- opacity

SEWING RING (multiple variants available) - Made of double velour polyester that encourages endothelialisation, gives ease in suturing and avoids suture looping and suture knots

Accordian Arrow

Durability

Accordian Arrow

Hemodynamics

Accordian Arrow

Thromboresistance

Accordian Arrow

Implantability

Indication

MILTONIA™ Mechanical Bi-Leaflet Heart Valve is indicated for the replacement of diseased, damaged, or malfunctioning native or prosthetic aortic or mitral valves
