• BioMime Branch
  • meriT Trials: Have proven the Safety and Efficacy of Biomime DES in more than 1,700 patients upto 5 years.

  • Biomime DES has proven Non Inferiority to XIENCE DES in meriT-V: published in Eurointervention (Sep'18) Biomime branch uses the same proven platform.

BioMime Branch

  • Proven benefits of BioMime, now available a dedicated bifurcation stent system. An intuitive design for treating bifurcations lesions.
  • Treating Bifurcation lesions with multiple stents can be a long and complex procedure.

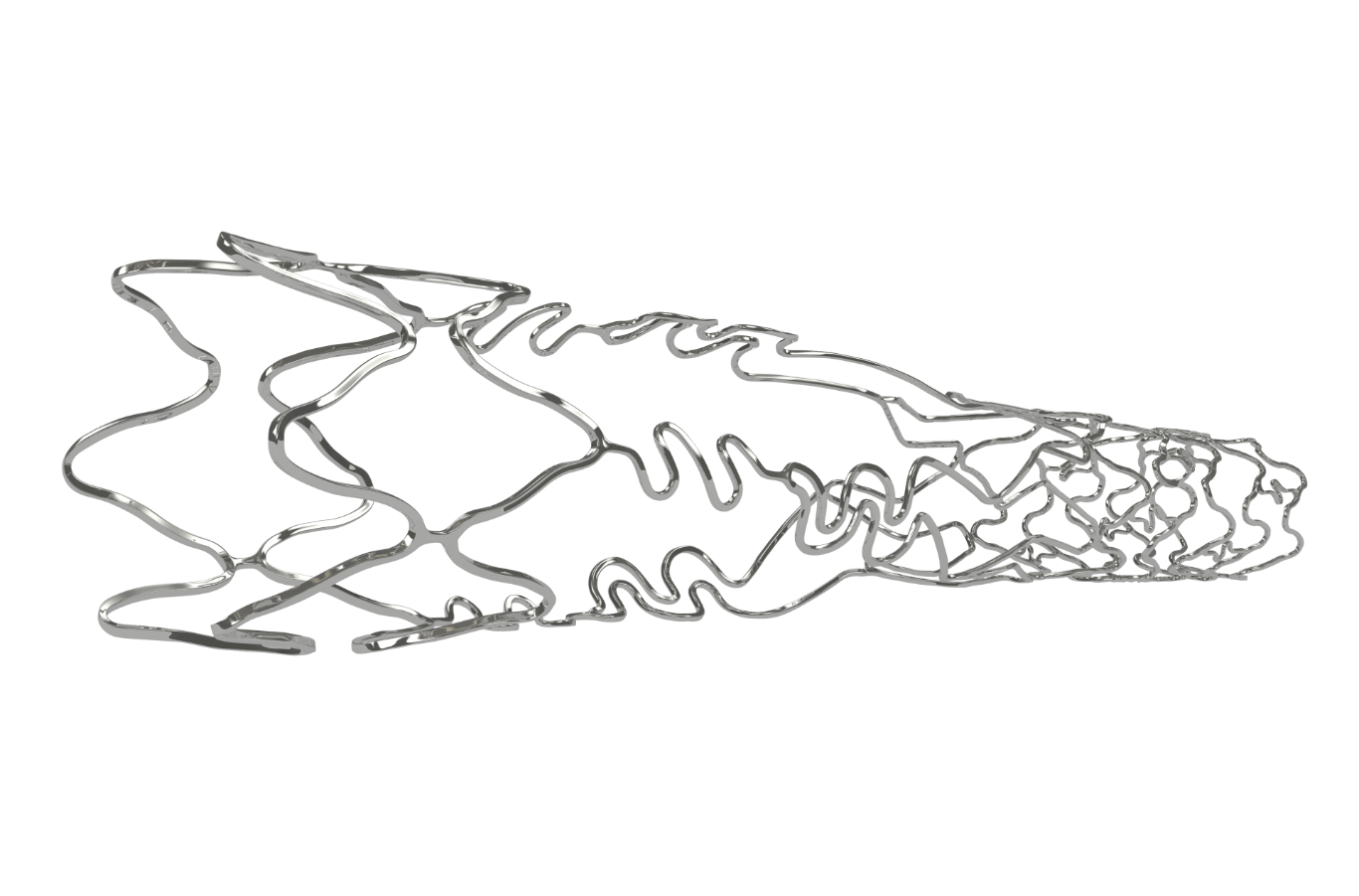

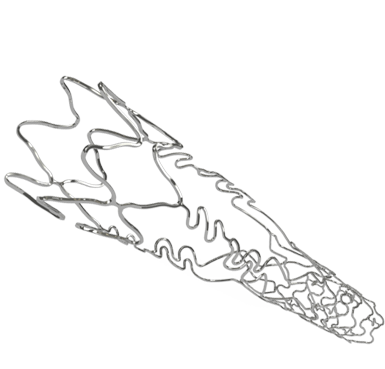

  • Biomime BranchTM is a Sirolimus Eluting Coronary Stent System with an ultra-thin 65 µm strut thickness. This next generation SES has a Novel Hybrid Design with a Proximal Main Branch anchoring segment and a Distal tapered Side Branch segment. The two segments are joined through an advanced “Flexi Connector Technology” for  continuous access and protection of side branch. The design offers ease of implantation and complete main vessel stent integration.
  • Due to the Step-Up Ballon System: The main branch and side branch segments get deployed at one go which reduces the overall procedural time and complexity of multiple hardware usage.
  • Post branch deployment, the main branch segment can be stented as a regular stent procedure.
img-biomime-branch

Benefits

  • 01

    It saves overall procedural time as compared to bifurcation stenting using multiple DES.

  • 02

    BioMime Branch limits multiple layering of stent struts in carina.

  • 03

    It also provides optimal main branch and side branch scaffolding and coverage.

  • 04

    It protects the side branch and allow permanent side branch access.

  • 05

    Biomime Branch is technically straightforward and intuitive to use.

Product Specifications



Stent material  Cobalt Chromium L605, Strut Thickness 65 µm
Stent architecture Proximal Main Branch anchoring segment with a Distal tapered Side Branch segment joined through an advanced “Flexi Connector Technology”
Drug Sirolimus
Polymer Biodegradable + Biocompatible
Delivery system Rapid Exchange
Drug Dose 1.25μg/mm2



Size Chart

Diameter / Length 16 mm 19 mm 24 mm 29 mm
Main branch-Side branch
2.50-2.50mm BBR25025016 BBR25025019 BBR25025024 BBR25025029
3.00-2.50mm BBR30025016 BBR30025019 BBR30025024 BBR30025029
3.50-2.50mm BBR35025016 BBR35025019 BBR35025024 BBR35025029
3.50-3.00mm BBR35030016 BBR35030019 BBR35030024 BBR35030029
4.00-3.50mm BBR40035016 BBR40035019 BBR40035024 BBR40035029
tech-img

Clinical Data

Study Name Type of Study Total Patients Status LINKS
Sponsor Initiated Study
BioMime Branch-1 Study Randomized controlled trial 183 Ongoing Know more
