MILTONIA

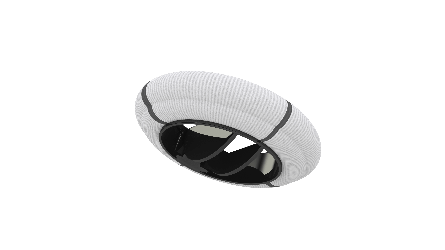

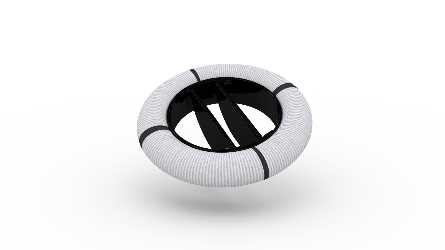

Bi-Leaflet Mechanical Heart Valve
High-Performance Material
The leaflets and orifice are made up of pyrolytic carbon, which guarantees excellent biocompatibility and superior safety.
Open Pivot Design
Open pivot design ensures mechanical washing of the hinges with blood flow and thus reduces the risk of thrombosis.
This design reduces the shear stress on the blood cells and hence minimizes damage to the blood cells.
85° Leaflet Opening
The 85° leaflet opening ensures improved laminar flow, reduced turbulence and optimizes the transvalvular gradients.
Suspended Leaflets
Suspended leaflet design enables fast opening and closing of the leaflets to allow sufficient blood flow that meets the physiological needs effectively.
Lower Noise
Smooth buffering reduces noise when the leaflets open and close, providing quieter functioning of the valve, thus ensuring a better quality of life.
Benefits
Open pivot design ensures mechanical washing of the hinges with blood flow and thus reduces the risk of thrombosis.
The 85° leaflet opening ensures improved laminar flow, reduced turbulence and optimizes the transvalvular gradients.
Open pivot design reduces the shear stress on the blood cells, minimizing damage to blood cells.
The valve is MRI conditional (static magnetic field strength of upto 3 Tesla). Please refer to the IFU for more details.
Suspended leaflet design enables fast opening and closing of the leaflets to allow sufficient blood flow that meets the physiological needs effectively.
Smooth buffering reduces noise when the leaflets open and close, providing quieter functioning of the valve, thus ensuring a better quality of life.
MILTONIA Open Heart Surgery for Heart valve replacement
Aortic valve repair and aortic valve replacement are procedures that treat diseases affecting the aortic valve, one of four valves. Many surgical approaches can be used to repair or replace heart valves, including open-heart surgery or minimally invasive heart surgery. Know more here.

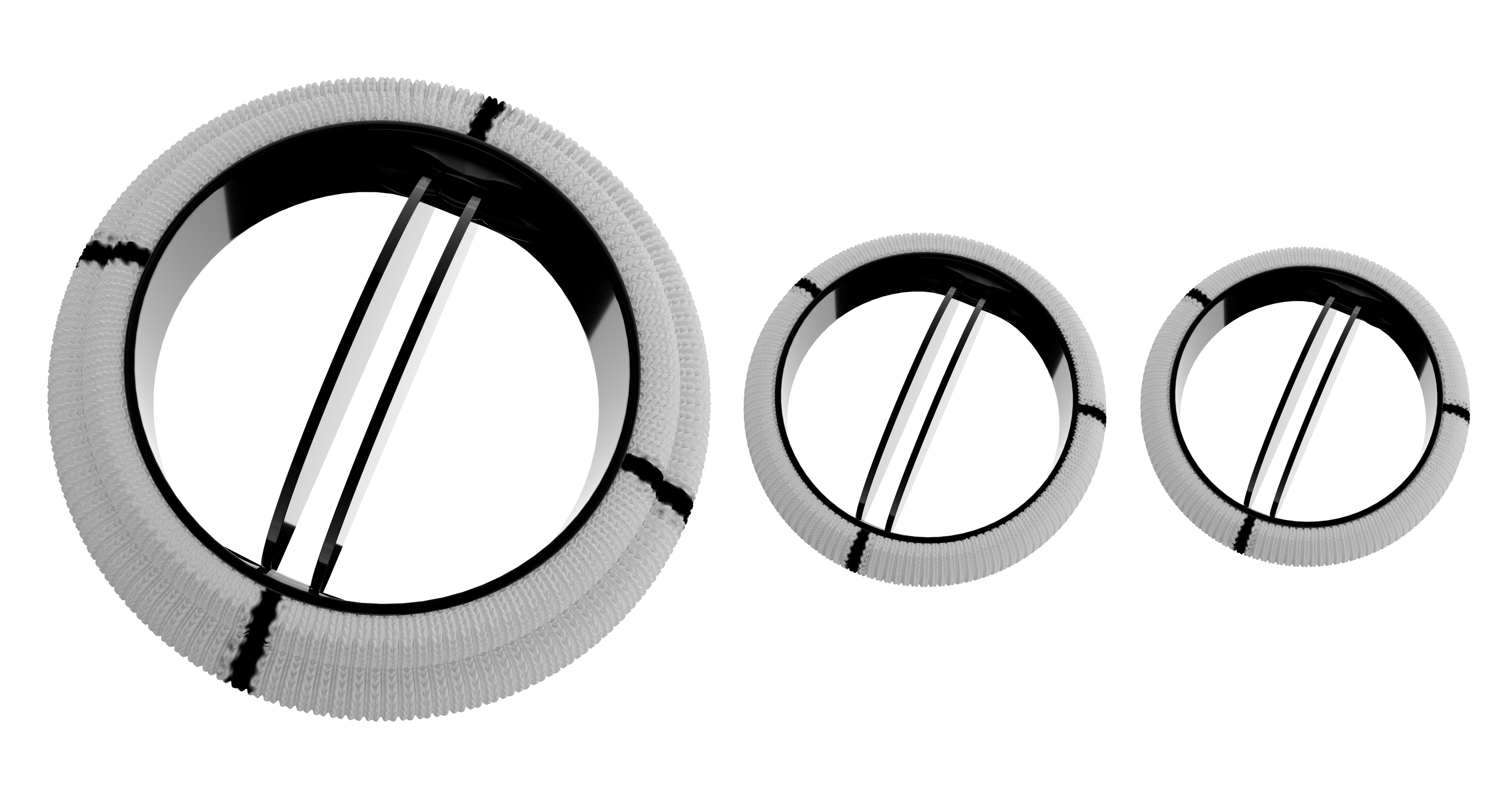

Size Chart
| SIZES | TAD(mm) | Outer Diameter(mm) | Inner Diameter(mm) |
|---|---|---|---|
| 19A | 16.2 | 19.8 | 14.8 |
| 21A | 18.2 | 21.8 | 16.8 |
| 23A | 20.2 | 23.8 | 18.8 |
| 25A | 22.2 | 25.8 | 20.8 |
| 27A | 24.2 | 27.8 | 22.8 |
| 16AP | 16.2 | 16.2 | 14.8 |
| 18AP | 18.2 | 18.2 | 16.8 |
| 20AP | 20.2 | 20.2 | 18.8 |
| 23M | 20.2 | 23.8 | 18.8 |
| 25M | 22.2 | 25.8 | 20.8 |
| 27M | 24.2 | 27.8 | 22.8 |
| 29M | 26.2 | 29.8 | 24.8 |
| 31M | 28.2 | 31.8 | 26.8 |
| 33M | 28.2 | 33.8 | 26.8 |
| AORTIC: | Available in Size 19,21,23,25,27 | |
| AORTIC HP (High Performance) | Available in Size 16,18,&20 | |
| MITRAL | Available in Sizes 23,25,27,29,31 & 33 | |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
