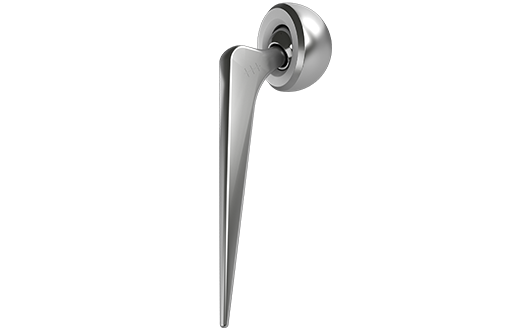

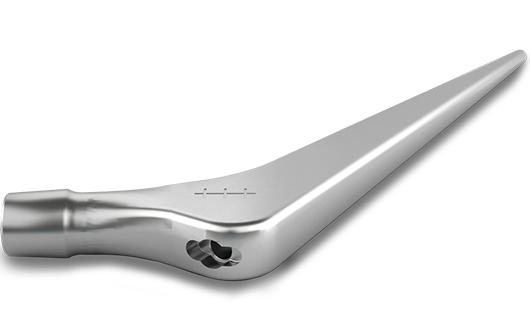

The cemented femoral stem has following basic design features:
1. The cemented femoral stem is manufactured from High Nitrogen Stainless Steel conforming to ISO 5832-9:2007 “Implants for surgery - Metallic materials - Part 9: Wrought high nitrogen stainless steel” and ASTM F1586-13: “Standard Specification for Wrought Nitrogen Strengthened 21 Chromium- 10 Nickel- 3 Manganese- 2.5 Molybdenum Stainless Steel Alloy bar for surgical implants” and intended to be mated with modular femoral head through 12/14 tapered male trunnion.
2. The cemented femoral stem is highly polished, double tapered, collarless design and is intended to be used with bone cement (cemented fixation).
3. The cemented femoral stem neck has standard 12/14 taper male trunnion for connection to modular femoral head.
4. This stem is available in 9 different sizes with standard (sizes 0, 1, 2, 3, 4) and narrow (sizes 1, 2, 3, 4) neck offsets.
|STCM-00/00||Cemented Femoral Stem Standard Size 00|
|STCM-00/01||Cemented Femoral Stem Standard Size 01|
|STCM-00/02||Cemented Femoral Stem Standard Size 02|
|STCM-00/03||Cemented Femoral Stem Standard Size 03|
|STCM-00/04||Cemented Femoral Stem Standard Size 04|
|STDM-00/01||Cemented Femoral Stem Narrow Size 01|
|STDM-00/02||Cemented Femoral Stem Narrow Size 02|
|STDM-00/03||Cemented Femoral Stem Narrow Size 03|
|STDM-00/04||Cemented Femoral Stem Narrow Size 04|
