NexGen

Bare metal stent

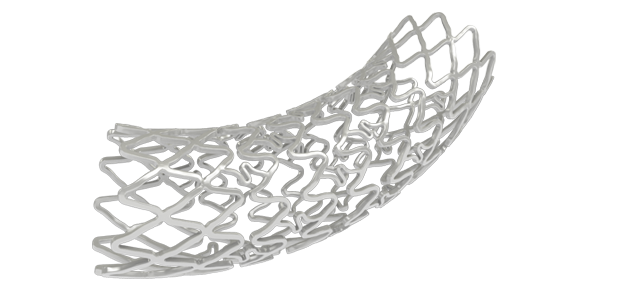

  • NexGenTM provides the platform for BioMime DES. NexGenTM is an ultra-thin 65 µm strut thickness bare metal stent.
  • Hybrid stent design with closed cells (on both ends of the stent) & open cells (in the middle) allows for Morphology Mediated Expansion for adequate conformability and lesser edge dissections.
  • Stent design features non-linear S links & Y connectors allowing for high flexibility and adequate side branch access.
  • Strut width variability ensures optimal radial strength.
  • Nexgen is the stent platform for Biomime DES; Safety and Efficacy of Biomime has been proven in meriT Trials with consistent data in more than 1,700 patients upto 5 years

Benefits

nexgen
  • 01

    Ultra-thin 65 µm strut thickness with Strut Width Variability for optimal radial strength and conformability.

  • 02

    Morphology Mediated Expansion for Lesser Edge Dissections.

  • 03

    Novel Hybrid Cell Design with Open cells in the middle for Adequate Side Branch Access.

Product Specifications

Stent material Cobalt Chromium L605
Stent Strut thickness 65 µm
Stent architecture Hybrid Cell Design with Non-Linear links
Delivery system Rapid Exchange



Size Chart

  NexGen Ordering Information
Diameter / Length  8 mm 13 mm 16 mm 19 mm 24 mm 29 mm 32 mm 37 mm 40 mm
2.5 mm NXG25008 NXG25013 NXG25016 NXG25019 NXG25024 NXG25029 NXG25032 NXG25037 NXG25040
2.75 mm NXG27508 NXG27513 NXG27516 NXG27519 NXG27524 NXG27529 NXG27532 NXG27537 NXG27540
3 mm NXG30008 NXG30013 NXG30016 NXG30019 NXG30024 NXG30029 NXG30032 NXG30037 NXG30040
3.5 mm NXG35008 NXG35013 NXG35016 NXG35019 NXG35024 NXG35029 NXG35032 NXG35037 NXG35040
4 mm NXG40008 NXG40013 NXG40016 NXG40019 NXG40024 NXG40029 NXG40032 NXG40037 NXG40040
4.5 mm NXG45008 NXG45013 NXG45016 NXG45019 NXG45024 NXG45029 NXG45032 NXG45037 NXG45040
