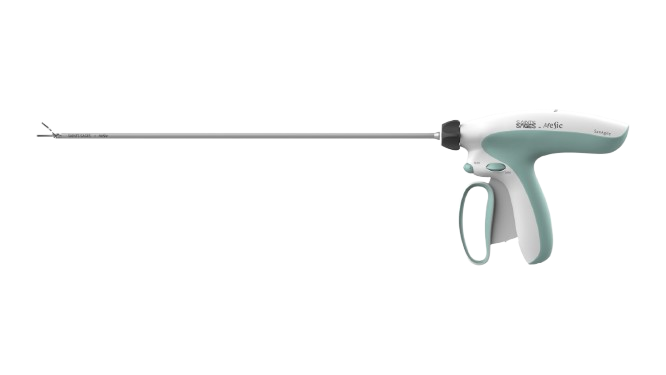

MESIC COMPACT ULTRASONIC SURGICAL SYSTEM
The MESIC Compact Ultrasonic Surgical System integrates advanced ultrasonic
technology with an innovative design to deliver unparalleled performance in surgical
settings. This compact system redefines operational efficiency with its all-in-one
design, eliminating the need for separate handpieces and footswitches.
Benefits
Portable and Space-Saving: Lightweight, portable, and features a plug-and-play design for enhanced operating room efficiency.
Extraordinary Reliability: Supports prolonged surgeries over 6 hours with minimal heat and consistent performance.
Intelligent RTTE (Real Time Tissue Effect) II Algorithm: Adjusts resonant frequency and energy delivery based on tissue thickness and fluid content for faster transection and secure sealing.
Integrated Handpiece: The design overcomes traditional system limitations, offering a cost-effective solution without the need for separate handpieces or footswitches.
Product Specifications
| Protection Against Electric Shock | Class I, CF | |
| Ingress Protection Rating | IP20 | |
| Main Input | 100-240V~, 50/60Hz, 100VA | |
| Drive Frequency Max | 55.5kHz + - 2% (Both Max and Min) | |
| Output | Electrical Power (Pmax) | 35W + - 10% |
| Power Reserve Index (Pi) | >4 | |
| Ambient Temperature | 10~40; | |
| Operation Conditions | Relative Humidity | 30%-75%, no condensing |
| Atmosphere Pressure | 700hPa~1060hPa | |
| Ambient Temperature | -20~55 | |
| Transport and Storage Conditions | Relative Humidity | 20% ~ 80%, no condensing |
| Atmosphere Pressure | 700hPa~1060hPa | |
| Dimension (LxW×H) | Controller | 19.0cm x 12.0cm x 5.2cm |
| Weight | Controller | <1Kg |
| Power Cord | 3m | |
| Duty Cycle (Mode of Operation) | Intermittent 20s |
Size Chart
| Product Code | Material Description | Sizes | Pack Size |
| MUGEN - 02 | Mesic Compact Ultrasonic Surgical System | - | 1 |
| MUSP - 14 | Mesic Compact Ultrasonic Surgical Shear - 14cm | 14 cm | 1 |
| MUSP - 23 | Mesic Compact Ultrasonic Surgical Shear - 23cm | 23 cm | 1 |
| MUSP - 36 | Mesic Compact Ultrasonic Surgical Shear - 36cm | 36 cm | 1 |
| MUSP - 45 | Mesic Compact Ultrasonic Surgical Shear - 45cm | 45 cm | 1 |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
