MILTONIA

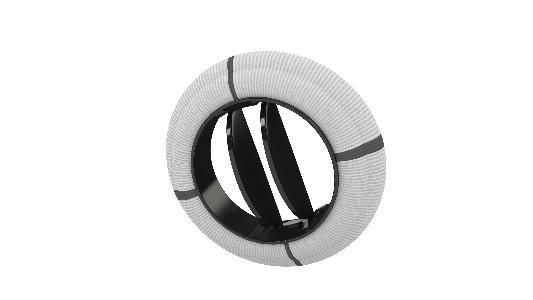

Bi-Leaflet Mechanical Heart Valve
High Performance Material
The leaflets and hinge ring are made of pyrolytic carbon, which guarantees the excellent biocompatibility and superior safety.
Open Pivot Design
Open pivot design ensures the sufficient blood washing to reduce the risk of thrombosis.
This design reduces the shear stress that acts on the blood cells to minimize the damage.
85° Leaflet Opening
The 85° leaflet opening provides improved laminar flow, reduces the turbulence, and optimizes the transvalvular gradients.
Suspending Leaflets
Suspending leaflet design enables the fast opening and closing to guarantee the physiological needs.
Lower Noise
Smooth buffering reduces the noise when the leaflets open and close, providing quieter impact for better life.
Benefits
Open pivot design ensures the sufficient blood washing to reduce the risk of thrombosis.
This design reduces the shear stress that acts on the blood cells to minimize the damage.
The 85° leaflet opening provides improved laminar flow, reduces the turbulence, and optimizes the trans-valvular gradients.
Compatible with MRI imaging: compatible at certain circumstances, radiopaque visualization during X-ray and cinefluoroscopy.
Suspended leaflets design enables the fast opening and closing to guarantee the physiological needs.
Smooth buffering reduces the noise with the opening and closing of leaflets, providing quieter impact for better life.
Indication
Please review the instructions for use prior to using these devices for a complete listing of indications, contraindications, warnings, precautions, potential adverse events and directions for use.
Size Chart
| SIZES | TAD(mm) | Outer Diameter(mm) | Inner Diameter(mm) |
|---|---|---|---|
| 19A | 16.2 | 19.8 | 14.8 |
| 21A | 18.2 | 21.8 | 16.8 |
| 23A | 20.2 | 23.8 | 18.8 |
| 25A | 22.2 | 25.8 | 20.8 |
| 27A | 24.2 | 27.8 | 22.8 |
| 16AP | 16.2 | 16.2 | 14.8 |
| 18AP | 18.2 | 18.2 | 16.8 |
| 20AP | 20.2 | 20.2 | 18.8 |
| 23M | 20.2 | 23.8 | 18.8 |
| 25M | 22.2 | 25.8 | 20.8 |
| 27M | 24.2 | 27.8 | 22.8 |
| 29M | 26.2 | 29.8 | 24.8 |
| 31M | 28.2 | 31.8 | 26.8 |
| 33M | 28.2 | 33.8 | 26.8 |
| AORTIC: | Available in Size 19,21,23,25,27 | |
| AORTIC HP (High Performance) | Available in Size 16,18,&20 | |
| MITRAL | Available in Sizes 23,25,27,29,31 & 33 | |
