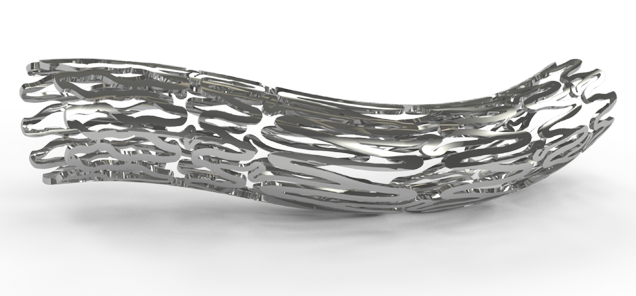

COGENT BMS
Cogent BMS is the latest generation Co-Cr Stent pre-mounted on Rx (monorail) balloon catheter system. The newer generation Co-Cr stent platform helps in lowering the strut thickness without compromising on the radial strength and visibility.
Hybrid stent architecture with Flexi-S connectors : Open Cell + Closed Cell
Latest generation Cobalt-Chromium (Co-Cr) alloy
Low strut thickness - 120µ
Improved Access & Deliverability
- HYBRID STENT ARCHITECTURE OFFERING STRENGTH & FLEXIBILITY
- LOWER STRUTS (CO-CR) MINIMIZE VASCULAR INJURY
- MINIMAL FORESHORTENING ≤ 1%
Benefits
Closed cell (proximal end) offers Ostial Scaffold Strength
Open cell (distal end) offers stent Conformability and Flexibility
Latest generation Co-Cr alloy L605 imparts outstanding radial strength and visibility
Lower strut thickness 120µ minimises the propensity to vascular injury
Laser bonded tip technology and short balloon overhang fecilitate tracking and crossing of stent delivery system
Product Specifications
| Stent Material | Cobalt Chromium L605 |
| Strut Thickness | 120µm (0.120mm) |
| Stent Diameters (mm) | 5.00, 6.00, 7.00 |
| Stent Lengths (mm) | 12.00, 15.00, 18.00 |
| Mean Recoil | <4% |
| Mean Foreshortening | ≤1% |
| Delivery System | Rapid Exchange (Rx) |
| Usable Catheter Length | 150 cm |
| Nominal Pressure (NP) | 9 atm |
| Rated Burst Pressure (RBP) | 13 /14 atm Depending upon diameter and length of Stent |
| RO markers | 2 - Platinum/Iridium |
| Proximal Shaft Diameter | 2.2F |
| Distal Shaft Diameter | 3.2F |
| Guidewire Compatibility | 0.014" (0.36mm) |
| Minimum Sheath /Introducer | 5F |
| Guide Catheters Compatibility | 6F (I.D = 0.070" or 1.8 mm) |
Size Chart
| Guidewire Compatbility 0.014" : Usable Shaft length (Rx) – 150cm | |||
| Diameter/Length | 12mm | 15mm | 18mm |
| 5mm | CGB05012B | CGB05015B | CGB05018B |
| 6mm | CGB06012B | CGB06015B | CGB06018B |
| 7mm | CGB07012B | CGB07015B | CGB07018B |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
