Anatomical Implants

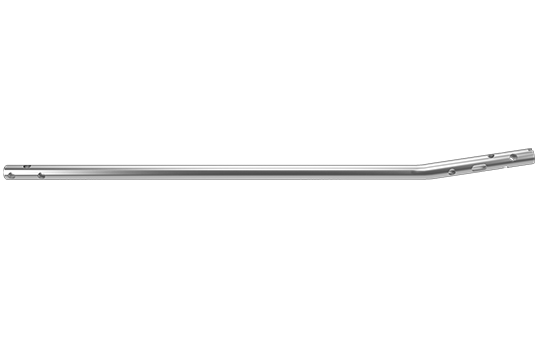

KET SS Cannulated Tibial Nail has three innovative locking options, in combination with dual-core locking screws, to increase the stability of the proximal fragment for proximal third fracture.

Two state of the art medio-lateral (ML) locking options enable primary compression or secondary controlled dynamisation.

Distal oblique locking option to prevent soft tissue damage and increase stability of the distal fragment. The CTN (Cannulated Tibia nail) is designed to fit anatomically in the medullary canal, allowing indirect reduction CTN Nail are Cannulated.

For diaphyseal fracture, it is recommended to lock distally first, to allow intra operative compression. For distal fractures, it is recommended to lock distally first, to facilitate reduction.

Size Chart

Available in:

  • Diameters: 8mm, 9mm and 10mm
  • Length: 260mm to 380mm


The Expert Tibial Nail is indicated for fractures in the tibial shaft as well as for metaphyseal and certain intraarticular fractures of the tibial head and the pilon tibiale.


  • All shaft fractures
  • Combinations of Shaft and metaphyseal fractures

Clinical Data

Product IFU

Note: IFU will be displayed after MDR Certification
